Local Homeowner Unveils DIY Passive Solar Heater: A Simple Stone Bank That Warms a Cold Region Home Naturally
Lead:
In a clever blend of old-school thermal mass principles and modern glazing, a compact sun-facing heat collector was constructed to capture winter sun and feed warm air into the living space—without electricity. What began as a sketch has been turned into a tangible structure that quietly heats during the day and radiates warmth after sunset. Here’s how it was built, step by step.
1. Site Selection and Orientation
The project started like any good story: with location. The collector is placed on the building’s sunniest side—ideally facing true south in the northern hemisphere—where direct low winter sun can reach it unobstructed. Trees, neighboring buildings, or roof overhangs that cast shade were mapped and avoided. The slope of the glazing was calculated to maximize winter sun incidence (roughly equal to the local latitude plus 10–15 degrees) so that rays strike deeply into the thermal mass.
2. Foundation and Base Channel Construction
A solid, frost-protected foundation was excavated at ground level. Concrete footings were poured to support both the heat collection box and the adjacent wall assembly. A recessed channel was integrated beneath the interior floor slab to connect the heat collector’s warm air outlet to the room. The channel (built of insulated masonry or concrete) forms the pathway for convected hot air to enter the interior. Waterproofing was applied to the exterior of the foundation to prevent moisture ingress, and a slight thermal break was introduced to avoid cold bridging into the living space.
3. Building the Heat Collection Box

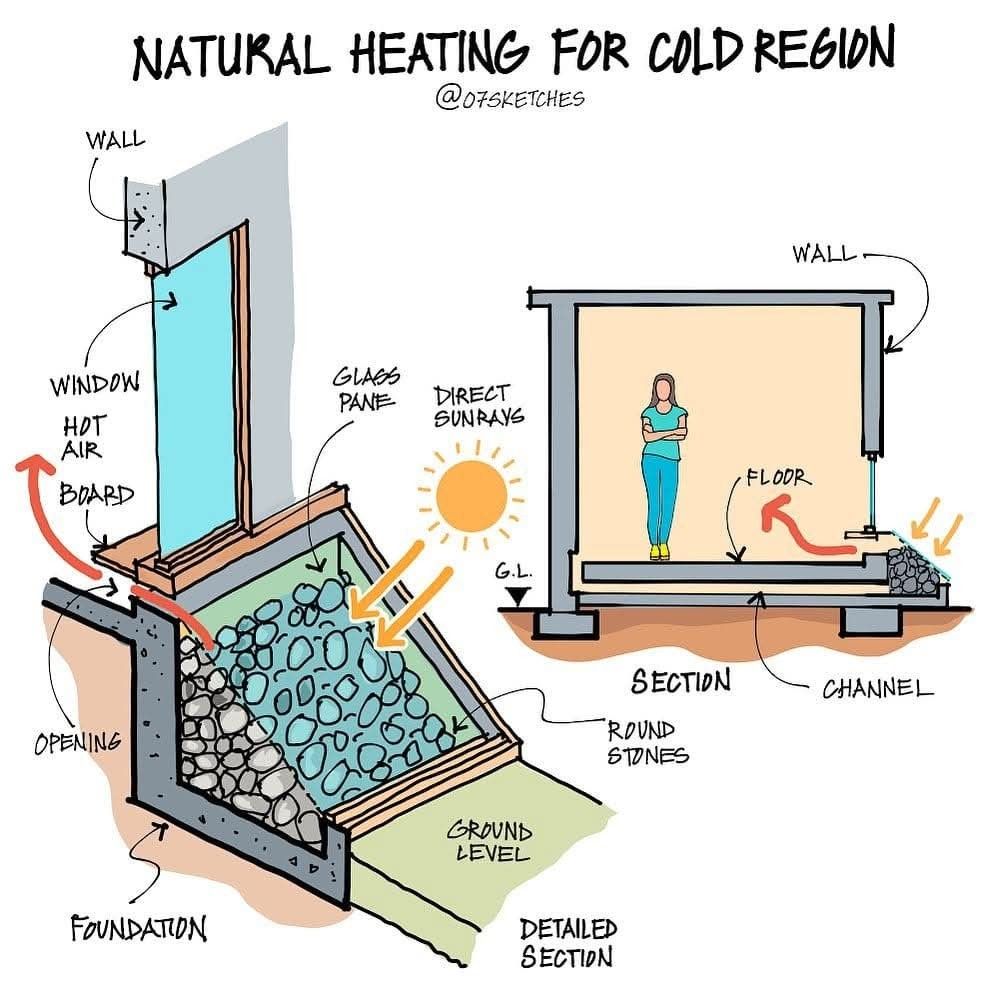

On top of the foundation, a boxed enclosure was framed with insulated sidewalls and a back wall—these prevent heat loss outward. The front face is sloped upward and outward, forming the sun-exposed plane. Inside this cavity, a thick layer of round stones (river rocks or well-washed cobbles) was placed, filling the sloped volume. These stones serve as the thermal mass: they absorb incoming solar radiation, store it as heat, and release it gradually. A rigid but breathable base supports the stones while allowing any incidental moisture to drain, and a thin insulating layer beneath the mass limits loss downward.
4. Glazing Installation
A glass pane was mounted over the stone bank, sealed tightly around its perimeter to create the “greenhouse” effect. The glazing is set at the designed angle and supported by a frame that ties into the surrounding structure; it must be sturdy enough to bear local snow loads and resist wind. Ideally, the glass is double-glazed or low-e coated to reduce radiative losses while still admitting high proportions of visible and near-infrared solar wavelengths. Weatherstripping and sealants ensure the air trapped between the stones and the glass is warmed efficiently rather than escaping uncontrolled.
5. Airflow Path and Hot Air Board
The key to delivering the stored heat inside is passive convection. Cooler air from the interior naturally flows down into the lower opening of the collector’s channel system. As it passes adjacent to the warmed stone mass, it heats, becomes less dense, and rises. At the top of this internal channel, a “hot air board” or deflector is placed to direct the rising warm air into the room while preventing backflow. The opening between the collector and the interior is fitted with a controlled vent—simple flaps or manual dampers allow the homeowner to throttle flow depending on outdoor temperature or sun availability. The internal floor integrates seamlessly over the channel so that the delivery of warm air feels like part of the living space rather than an add-on vent.
6. Insulation and Air Sealing
The surrounding walls, floor, and interface with the existing structure were carefully insulated to keep the captured heat from leaking. All joints where the collector meets the interior floor and wall were sealed with foam or caulk. Thermal breaks were inserted where the frame might conduct cold inward. The back and sides of the stone bank also received reflective or insulating treatment so that the vast majority of the solar energy is pushed forward into the room, not lost outward.
7. Finishing and Integration
Exterior finishes were added to blend the collector into the landscape—trim around glazing, protective overhang to shed rain without blocking winter sun, and a gravel apron for drainage. Inside, the warm air outlet was dressed with simple trim or a low-profile grille, giving a clean daily view without mechanical complexity. A small access panel was included to inspect and clean the interior of the channel and to remove any debris that might accumulate behind the stones.
8. Operation Protocol
Once constructed, the system runs automatically: daylight pours through the glass, warming the stone mass. Warm air is drawn through convection into the living space, especially when interior air is cooler. On bright days, the homeowner opens the vent early to maximize flow; on cloudy or very cold nights, the vent can be partially closed to retain stored heat. Optional enhancements include low-power thermostatic vent actuators or small, solar-powered fans to boost circulation when sunlight is abundant, though pure passive function is the baseline.
9. Maintenance and Longevity
Routine care includes keeping the glazing clean so sunlight isn’t blocked, checking seals for degradation, and ensuring no water is pooling behind or under the stones. If condensation appears, adding small passive desiccant compartments or improving ventilation of the outer cavity can help. The stone mass is durable; however, if any settling or displacement occurs, the access allows rearranging or topping up without major demolition.
10. Safety and Contingencies
Because the system is integrated with the home’s envelope, fire safety is considered: all interior facing materials near the warm air outlet are non-combustible or rated for the expected temperature. The glazing frame is engineered for load. The airflow pathway includes screens or filters to keep insects and small debris from entering. A simple bypass or closure mechanism prevents overheating on unusually hot bright days, protecting both the mass and interior comfort.
Wrap-up:
What looks like a modest stone slope beneath glass is, in fact, a carefully tuned passive heater—a small, quiet addition that turns winter sun into usable heat. With solid foundation work, a properly angled glass collector, a hefty thermal mass, and a channel to the interior, a household in a cold region can gain several degrees of free heating and reduce reliance on active systems.
