A centuries-old heating method, the horizontal chimney, is re-emerging as an eco-friendly and affordable solution to keep homes warm in freezing regions—without the heavy costs of modern heating systems.

Article

When the icy grip of winter descends on very cold climates, the struggle to keep homes warm becomes a top priority. While modern heating systems rely heavily on electricity, gas, or oil, an old yet ingenious system known as the Horizontal Chimney is making a comeback.

This traditional heating method, once common in high-altitude and northern regions, uses the natural movement of heat and hot air from a fireplace to warm floors and seating platforms. Affordable, sustainable, and remarkably effective, the horizontal chimney system could become an essential design feature for homes in the face of rising energy prices and growing environmental concerns.

🔥 The Principle of the Horizontal Chimney

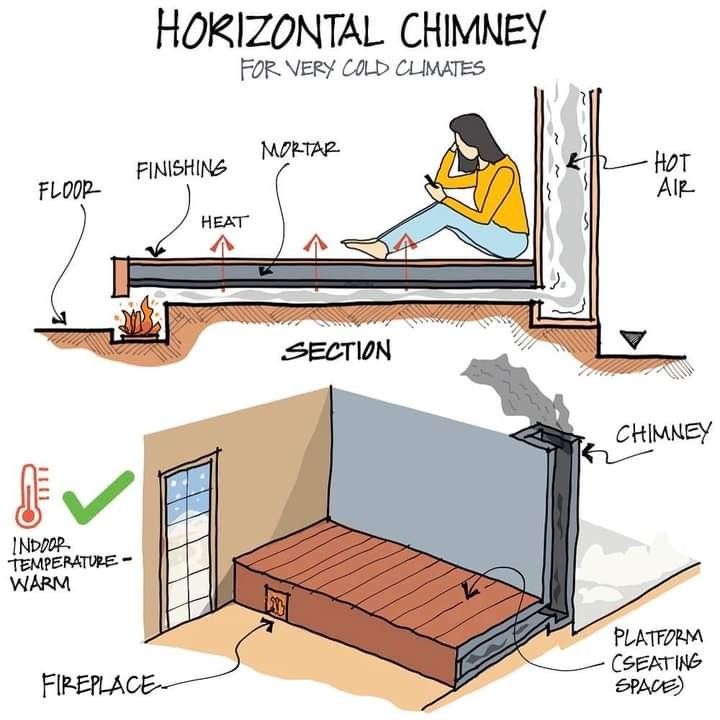

The working concept is beautifully simple. A fireplace generates heat, and instead of allowing the hot air and smoke to rise directly through a vertical chimney, the system channels the heat horizontally through specially built passages beneath the floor.

Here’s how it works step by step:

1. Fireplace Heat: A fire is lit in a recessed fireplace built into the side of the room.
2. Horizontal Heat Channels: Heat and smoke travel through horizontal flues constructed under the floor platform.
3. Thermal Absorption: The mortar, finishing layers, and floor materials absorb the heat, gradually radiating warmth into the living space above.
4. Chimney Outlet: Finally, smoke exits vertically through a chimney on the far side, leaving behind the heat stored in the floor.

The result? A consistently warm floor and a cozy indoor temperature, even in the coldest weather.

🏔️ Designed for Harsh Climates

The horizontal chimney system was specifically developed for regions with severe winters, where outdoor temperatures often drop below freezing for extended periods. Unlike open fireplaces that lose most of their heat to rising smoke, this system maximizes heat retention by allowing the warmth to linger beneath the living space before it escapes outdoors.

This design makes it especially effective in very cold climates, where conserving every bit of heat can mean the difference between comfort and frostbite.

🌍 Ancient Roots and Global Use

The horizontal chimney system is not new. Variants of this heating technique have been used across the world for centuries:

• Korea’s Ondol System: Perhaps the most famous version, Ondol, used heated flues beneath stone floors to warm entire households during harsh Korean winters.
• Chinese Kang: Northern China developed the kang bed-stove, a large platform heated by flue gases that served as both a sleeping and living area.
• Russian Stove: In cold Russian villages, large masonry stoves with extended flue passages provided heat for cooking, sleeping, and indoor work.

The horizontal chimney, as illustrated today, borrows inspiration from these ancient systems while adapting them for modern construction and comfort.

⚡ Energy Efficiency and Cost Savings

One of the greatest advantages of the horizontal chimney system is its energy efficiency.

• Reduced Fuel Use: By channeling heat through the floor, the system extracts maximum warmth from a single fire, requiring less fuel.
• Long-Lasting Warmth: The floor stores heat like a thermal battery, releasing it slowly over hours, even after the fire has burned out.
• Lower Bills: In regions where heating can consume 40–60% of household energy costs, this traditional system offers substantial savings.

This makes it not only eco-friendly but also a lifeline for low-income households struggling with high heating bills.

🏠 Modern Adaptations

While the traditional system used stone slabs, clay, and mortar, modern architects are exploring upgrades:

• Reinforced Floors: Using concrete or heat-retentive tiles for better durability.
• Insulated Chimneys: To prevent heat loss and improve airflow efficiency.
• Hybrid Systems: Combining horizontal chimneys with solar heating or biomass stoves for year-round sustainability.

These innovations preserve the essence of the old system while meeting modern safety and building codes.

🌱 Environmental Impact

With the world facing a climate crisis, the horizontal chimney system presents a low-carbon solution. Unlike electric heaters or gas furnaces, which rely on fossil fuels, this method can operate on renewable resources like firewood, biomass, or even agricultural waste.

Additionally, because it uses less fuel overall, it reduces carbon emissions compared to traditional fireplaces. For rural areas with abundant natural resources, it is both practical and sustainable.

👩‍👩‍👧 Social and Cultural Benefits

The horizontal chimney is more than just a heating system—it creates social spaces. The raised, warm platform doubles as a seating or sleeping area, where families can gather, eat, and rest.

In cultures that historically used these systems, such as Korea and China, the heated floor or platform became the heart of the home, fostering closeness during long winters. Bringing this concept back today could enrich not only energy efficiency but also cultural traditions of warmth and togetherness.

📌 Challenges and Limitations

Of course, no system is perfect. The horizontal chimney faces some challenges:

• Smoke Risks: If poorly designed, smoke may leak indoors, posing health hazards.
• Construction Complexity: Requires careful engineering and skilled masonry to ensure safe airflow.
• Urban Limitations: Less practical for high-rise apartments or densely packed urban areas.

Still, in rural homes, mountain villages, or eco-conscious housing projects, these challenges are manageable with modern design improvements.

🏛️ Real-World Comeback

Around the world, architects and sustainability advocates are already experimenting with horizontal chimney-inspired designs.

• In Nepal and Tibet, NGOs are promoting improved floor-heating stoves to reduce indoor smoke and keep mountain homes warm.
• In Europe, eco-villages are adapting masonry stoves with horizontal flues for sustainable living.
• In North America, off-grid communities and eco-builders are embracing similar systems for energy independence.

These examples show that the horizontal chimney is not just a relic of the past—it’s a solution for the future.

🔮 Looking Ahead: Heating Tomorrow with Yesterday’s Wisdom

As the world searches for ways to cut energy costs and reduce emissions, traditional heating systems like the horizontal chimney deserve renewed attention. They represent a philosophy of working with nature, maximizing efficiency, and designing for resilience in the harshest climates.

What was once seen as outdated technology is now being recognized as a model of sustainable design.

🌟 Conclusion

The Horizontal Chimney System proves that sometimes the best solutions aren’t new inventions but rediscoveries of ancient wisdom. By channeling heat beneath floors and creating cozy living spaces, this method not only warms homes but also reconnects us with traditions of resilience and ingenuity.

As energy crises intensify and winters grow harsher, the horizontal chimney may soon step out of history books and into blueprints for the homes of tomorrow.
