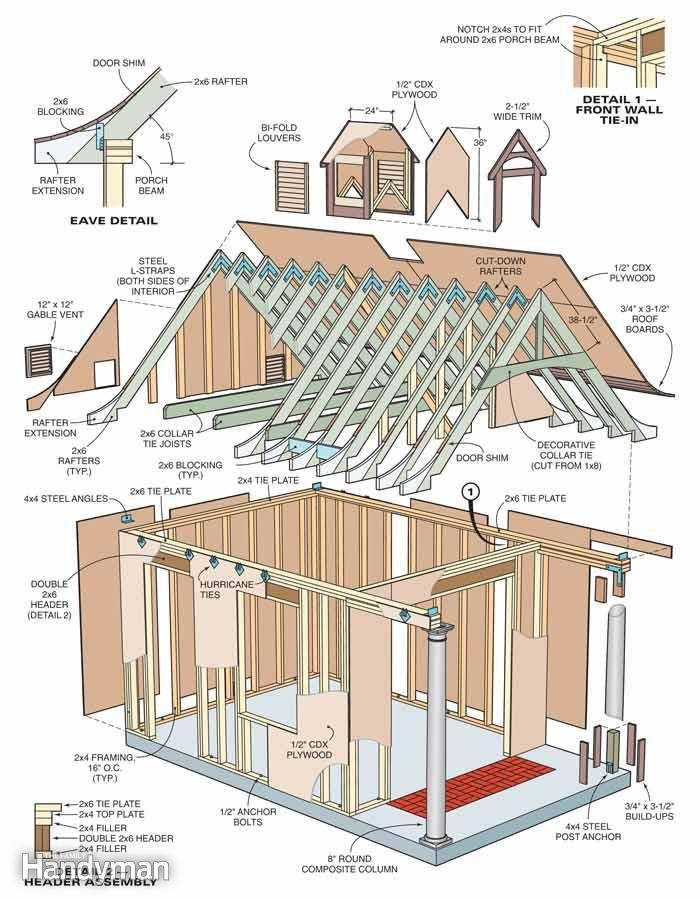

August 9, 2025 – A highly detailed architectural diagram for a wood-frame outbuilding has captured the attention of DIY enthusiasts and builders online, and for good reason. It is a masterclass in resilient construction, showcasing a structure engineered to withstand significant forces. With its heavy-duty hardware and robust framing techniques, it looks like the ultimate blueprint for a “storm-proof” workshop or backyard studio.
The plan is an outstanding educational tool, laying out the anatomy of a fortress-like structure. But for the aspiring builder, its greatest strength—its specific, high-strength design—is also its greatest risk. The critical mistake is assuming this one-size-fits-all “fortress” is suitable for every location. Building this exact structure without adapting it for local climate, soil, and building codes could lead to a project that is not only unsafe but illegal.
Step 1: Deconstructing the “Storm-Proof” Design
To understand the risks, we must first appreciate what makes this design so robust. It is a textbook example of how to build for a high-wind environment, such as a coastal region in the US or parts of Europe prone to severe storms.
- An Unshakeable Foundation: The design doesn’t just rest on the ground; it’s anchored to it. The walls are physically connected to the concrete slab foundation with ½” Anchor Bolts. The porch support column isn’t just sitting on a block; it’s locked in place with a 4×4 Steel Post Anchor. This foundational grip is the first line of defense, designed to prevent the entire building from lifting or sliding in extreme winds.
- A Rigid “Shear Wall” System: The strength of the walls comes not just from the 2×4 framing, but from the ½” CDX Plywood sheathing that covers it. When properly nailed, this sheathing ties all the individual studs together into a single, rigid panel known as a shear wall. This system is incredibly effective at resisting the racking and twisting forces of wind.
- A Roof That Won’t Fly Away: The plan’s most impressive feature is its roof-to-wall connection. Instead of just resting on the walls, the roof rafters are fastened with Hurricane Ties. These small, stamped steel brackets are engineered to create a continuous load path, locking the roof structure to the wall frame. This is crucial for preventing wind from getting under the eaves and tearing the roof off—a common failure point in major storms.
- Heavy-Duty Framing: Throughout the plan, there is an emphasis on strength. A Double 2×6 Header, as shown in the header assembly detail, provides immense support over the wide front opening, ensuring the weight of the roof doesn’t cause sagging.
For its intended purpose—resisting wind—this is an exemplary design.
Step 2: The Critical Mistake – Building the Wrong Fortress for the Fight
The biggest mistake a DIY builder can make is to become so impressed with this “storm-proof” design that they build it without considering if a storm is their region’s biggest threat. Building this exact structure in a cold, snowy climate or a seismic zone without modification would be a critical error.
The Foundation Flaw: The Battle Against Frost
- The Problem: The plan shows a monolithic slab-on-grade foundation. This type of foundation sits flat on the ground. In cold climates across the northern US, Canada, and much of Northern and Eastern Europe, this is a recipe for failure due to frost heave. When the water in the ground freezes, it expands with enough force to lift buildings, cracking concrete and twisting frames. When it thaws, the structure settles unevenly.
- The Correction: In any region with freezing winters, building codes demand a frost-proof foundation. This means the foundation footings must be placed below the local frost line—the depth to which the ground freezes. This ensures the building is resting on stable, unfrozen soil year-round. A builder in such a climate would need to replace the slab shown with a foundation system of deep piers or a continuous footing-and-stem-wall that extends below this critical depth.
The Roof Under Pressure: The Challenge of Snow Load
- The Problem: This roof is designed for wind uplift, but it may not be designed for heavy vertical loads. In regions that receive significant snowfall, a massive weight can accumulate on the roof. The 2×6 rafters, spaced as shown, may not be strong enough to support several tons of wet, heavy snow without sagging or breaking.
- The Correction: In snowy regions, building codes provide specific tables for sizing roof framing based on the local “ground snow load.” This would likely require stronger rafters (e.g., 2x8s or 2x10s), closer spacing between the rafters, or a steeper roof pitch to help shed snow more effectively.
Step 3: Navigating the Invisible Hurdle – Building Codes and Permits
Beyond climate, the most dangerous assumption is that any single plan can be built anywhere without official oversight.
- The Problem: A structure of this size and permanence almost universally requires a building permit. A building department will not approve a plan just because it looks good online; they will review it to ensure it complies with dozens of hyper-local codes related to framing, electrical, plumbing, energy efficiency, and zoning setbacks.
- The Correction: Before purchasing any materials, the first step is always to contact the local building authority. They are the definitive source for the specific requirements in your jurisdiction. They will tell you what loads your structure needs to be designed for and what documentation you need to submit. Ignoring this step can lead to fines, stop-work orders, and even orders to tear down your project.
Conclusion: An Excellent Template, Not a Universal Solution
“A detailed plan like this is a fantastic learning tool, but it’s not a magic bullet,” warns David Miller, a (fictional) structural engineer. “It teaches you the ‘how’ of good construction techniques, like installing hurricane ties. But it can’t teach you the ‘what’ and ‘why’ for your specific location. What size footing do you need? What’s your required snow load? Those answers don’t come from a generic drawing; they come from your local building code.”
This “storm-proof” diagram should be viewed as an outstanding template for robust construction, not a ready-to-build blueprint. It shows the methods for creating a strong building. But to create a structure that is truly safe, legal, and durable, those methods must be applied to materials and dimensions that are specifically engineered for the unique challenges of your climate and the strict requirements of your local building code.
